Mfr Part # |
Price |
Stock ? |
Manufacturer |
Min order |
RoHS status |
Seri |
Package |
Part Status |
Datasheet |
Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Approval Agency | Relay Type | Grade | Qualification | Add selected items to basket |
|
|
|
59130
106,435
VND
Bulk
|
- immediate |
CIT Relay and Switch |
1 |
RoHS Compliant |
- |
Tube |
Active |
Datasheet
|
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
|
|
59130
106,435
VND
Bulk
|
- immediate |
CIT Relay and Switch |
1 |
RoHS Compliant |
- |
Tube |
Active |
Datasheet
|
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
|
|
59130
106,435
VND
Bulk
|
- immediate |
CIT Relay and Switch |
1 |
RoHS Compliant |
* |
Tube |
Active |
Datasheet
|
Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 277VAC, 110VDC - Max | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | cURus, TUV | General Purpose | - | - | - |
|
|
|
|
59130
106,435
VND
Bulk
|
- immediate |
CIT Relay and Switch |
1 |
RoHS Compliant |
* |
Tube |
Active |
Datasheet
|
Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 277VAC, 110VDC - Max | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - | - |
|
|
|
|
59400
106,920
VND
Bulk
|
- immediate |
CIT Relay and Switch |
1 |
RoHS Compliant |
* |
Tube |
Active |
Datasheet
|
Through Hole | 12VDC | SPDT (1 Form C) | 30 A | 277VAC, 110VDC - Max | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | cURus, TUV | General Purpose | - | - | - |
|
|
|
|
60210
108,379
VND
Bulk
|
- immediate |
CIT Relay and Switch |
1 |
RoHS Compliant |
* |
Tube |
Active |
Datasheet
|
Through Hole | 24VDC | SPDT (1 Form C) | 30 A | 277VAC, 110VDC - Max | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, TUV | General Purpose | - | - | - |
|
|
|
|
61560
110,808
VND
Bulk
|
- immediate |
CIT Relay and Switch |
1 |
RoHS Compliant |
- |
Tube |
Active |
Datasheet
|
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
|
|
61560
110,808
VND
Bulk
|
- immediate |
CIT Relay and Switch |
1 |
RoHS Compliant |
* |
Tube |
Active |
Datasheet
|
Through Hole | 12VDC | SPDT (1 Form C) | 30 A | 277VAC, 110VDC - Max | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - | - |
|
|
|
|
445500
801,900
VND
Bulk
|
- immediate |
TE Connectivity Potter & Brumfield Relays |
1 |
ROHS3 Compliant |
SNR, SCHRACK |
Tube |
Active |
Datasheet
|
Through Hole | 60VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 2.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 42 VDC | 3 VDC | 12 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus, VDE | General Purpose | - | - |
|
|
|
|
446310
803,359
VND
Bulk
|
- immediate |
Omron Electronics Inc-EMC Div |
20 |
RoHS Compliant |
G7L |
Bulk |
Active |
Datasheet
|
Chassis Mount | 6VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 317 mA | Non Latching | - | Screw Terminal | - | - | 4.5 VDC | 0.9 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
|
|
455220
819,396
VND
Bulk
|
- immediate |
Finder Relays, Inc. |
10 |
ROHS3 Compliant |
60 |
Bulk |
Active |
Datasheet
|
Socketable | 24VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 53.9 mA | Non Latching | Diode, Lighted Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | 19.2 VDC | 4.8 VDC | 11 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
|
|
458190
824,743
VND
Bulk
|
- immediate |
Panasonic Electric Works |
20 |
ROHS3 Compliant |
NC |
Tube |
Active |
Datasheet
|
Through Hole | 6VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 60 mA | Non Latching | - | PC Pin | - | - | 4.8 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
|
|
464670
836,407
VND
Bulk
|
- immediate |
IDEC |
1 |
ROHS3 Compliant |
RV8 |
Bulk |
Active |
Datasheet
|
DIN Rail | 18VDC | DPDT (2 Form C) | 6 A | 250VAC - Nom | - | 24 mA | Non Latching | Socket Included | Spring Terminal | - | - | 14.4 VDC | 1.26 VDC | 15 ms | 15 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, cULus | General Purpose | - | - |
|
|
|
|
466560
839,808
VND
Bulk
|
- immediate |
Omron Electronics Inc-EMC Div |
20 |
RoHS Compliant |
G7L |
Bulk |
Active |
Datasheet
|

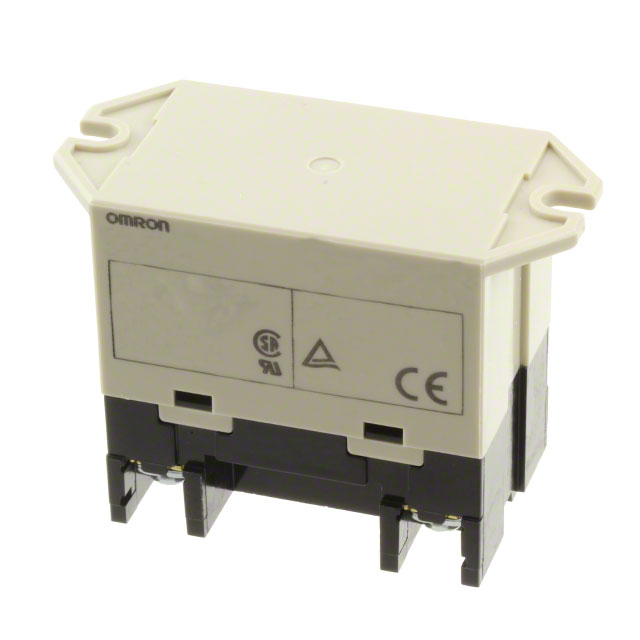

Chassis Mount | 6VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 317 mA | Non Latching | - | Screw Terminal | - | - | 4.5 VDC | 0.9 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
|
|
472230
850,015
VND
Bulk
|
- immediate |
Omron Electronics Inc-EMC Div |
1 |
ROHS3 Compliant |
G2R |
Tray |
Active |
Datasheet
|
Through Hole | 220VAC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 4.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 176 VAC | 66 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
|
|
474930
854,875
VND
Bulk
|
- immediate |
Schneider Electric |
1 |
ROHS3 Compliant |
Harmony |
Box |
Active |
Datasheet
|
Socketable | 230VAC | 3PDT (3 Form C) | 15 A | 250VAC, 28VDC - Max | 3750VA, 420W | 24 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 184 VAC | 34.5 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CSA, EAC, UL | General Purpose | - | - |
|
|
|
|
478170
860,707
VND
Bulk
|
- immediate |
IDEC |
1 |
ROHS3 Compliant |
RV8 |
Bulk |
Active |
Datasheet
|
DIN Rail | 12VDC | SPDT (1 Form C) | 12 A | 250VAC - Nom | - | 32 mA | Non Latching | Socket Included | Spring Terminal | - | - | 9.6 VDC | 0.84 VDC | 15 ms | 15 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, cULus | General Purpose | - | - |
|
|
|
|
478170
860,707
VND
Bulk
|
- immediate |
IDEC |
1 |
ROHS3 Compliant |
RV8 |
Bulk |
Active |
Datasheet
|
DIN Rail | 12VAC/DC | DPDT (2 Form C) | 6 A | 250VAC - Nom | - | 29 mA | Non Latching | Socket Included | Spring Terminal | - | - | 9.6 VAC/DC | 0.84 VAC/DC | 15 ms | 15 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, cULus | General Purpose | - | - |
|
|
|
|
490860
883,548
VND
Bulk
|
- immediate |
IDEC |
1 |
ROHS3 Compliant |
RV8 |
Bulk |
Active |
Datasheet
|
DIN Rail | 12VAC/DC | SPDT (1 Form C) | 12 A | 250VAC - Nom | - | 29 mA | Non Latching | Socket Included | Spring Terminal | - | - | 9.6 VAC/DC | 0.84 VAC/DC | 15 ms | 15 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, cULus | General Purpose | - | - |
|
|
|
|
490860
883,548
VND
Bulk
|
- immediate |
Panasonic Electric Works |
1 |
ROHS3 Compliant |
S |
Box |
Active |
Datasheet
|
Through Hole | 6VDC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 4 A | 250VAC, 48VDC - Max | 1000VA, 192W | 33.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 4.2 VDC | - | 15 ms | 15 ms | -55°C ~ 65°C | Silver Alloy, Cadmium Free | CSA, UR | General Purpose | - | - |
|
